TI_德州仪器_逻辑芯片_D型触发器_SN74LV573APWR_顶点光电子商城_电子元器件专业采购网，保证正品，用心服务

固定逻辑器件/德州仪器（TI）/TI 德州仪器逻辑芯片 D型触发器 SN74LV573APWR

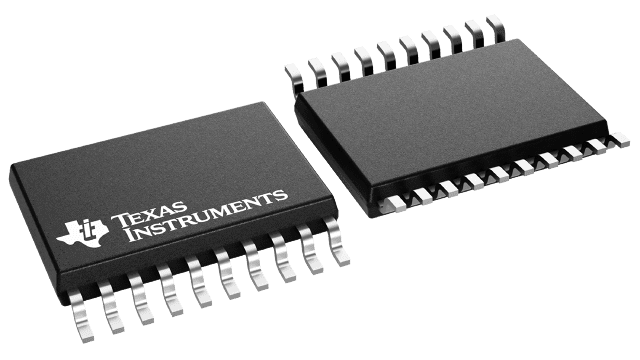

商品名称：TI 德州仪器逻辑芯片 D型触发器 SN74LV573APWR

商品型号：SN74LV573APWR

数据手册：

品牌：德州仪器（TI）

封装规格：TSSOP

商品类别：

二级分类：固定逻辑器件

商品批号：0314P/QX

货期：现货

商品编号：

商品重量：0.1kg

库存数量：10000 个

单价：¥ 10000.0000 询价

订购量：

产品详情
相关产品

质量信息

RoHS	是
REACH	是
引脚镀层/焊球材料	NIPDAU
MSL 等级/回流焊峰值温度	Level-1-260C-UNLIM

封装信息

封装 \| 引脚	TSSOP (PW) \| 20
包装数量 \| 包装：	2,000 \| LARGE T&R
工作温度范围 (℃)	-40 to 85

SN74LV573A 的特性

2-V to 5.5-V V_CC Operation
Max t_pd of 8 ns at 5 V
Typical V_OLP (Output Ground Bounce)
<0.8 V at V_CC = 3.3 V, T_A = 25°C
Typical V_OHV (Output V_OH Undershoot)
>2.3 V at V_CC = 3.3 V, T_A = 25°C
Supports Mixed-Mode Voltage Operation on All Ports
I_off Supports Partial-Power-Down Mode Operation
Latch-Up Performance Exceeds 250 mA Per JESD 17
ESD Protection Exceeds JESD 22

2000-V Human-Body Model (A114-A)
200-V Machine Model (A115-A)
1000-V Charged-Device Model (C101)

SN74LV573A 的说明

The ’LV573A devices are octal transparent D-type latches designed for 2-V to 5.5-V V_CC operation.

These devices feature 3-state outputs designed specifically for driving highly capacitive or relatively low-impedance loads. They are particularly suitable for implementing buffer registers, I/O ports, bidirectional bus drivers, and working registers.

While the latch-enable (LE) input is high, the Q outputs follow the data (D) inputs. When LE is taken low, the Q outputs are latched at the logic levels set up at the D inputs.

A buffered output-enable (OE)\ input can be used to place the eight outputs in either a normal logic state (high or low logic levels) or high-impedance state. In the high-impedance state, the outputs neither load nor drive the bus lines significantly. The high-impedance state and the increased drive provide the capability to drive bus lines without need for interface or pullup components.

OE\ does not affect internal operations of the latch. Old data can be retained or new data can be entered while the outputs are in the high-impedance state.

To ensure the high-impedance state during power up or power down, OE\ should be tied to V_CC through a pullup resistor; the minimum value of the resistor is determined by the current-sinking capability of the driver.

These devices are fully specified for partial-power-down applications using I_off. The I_off circuitry disables the outputs, preventing damaging current backflow through the devices when they are powered down.
